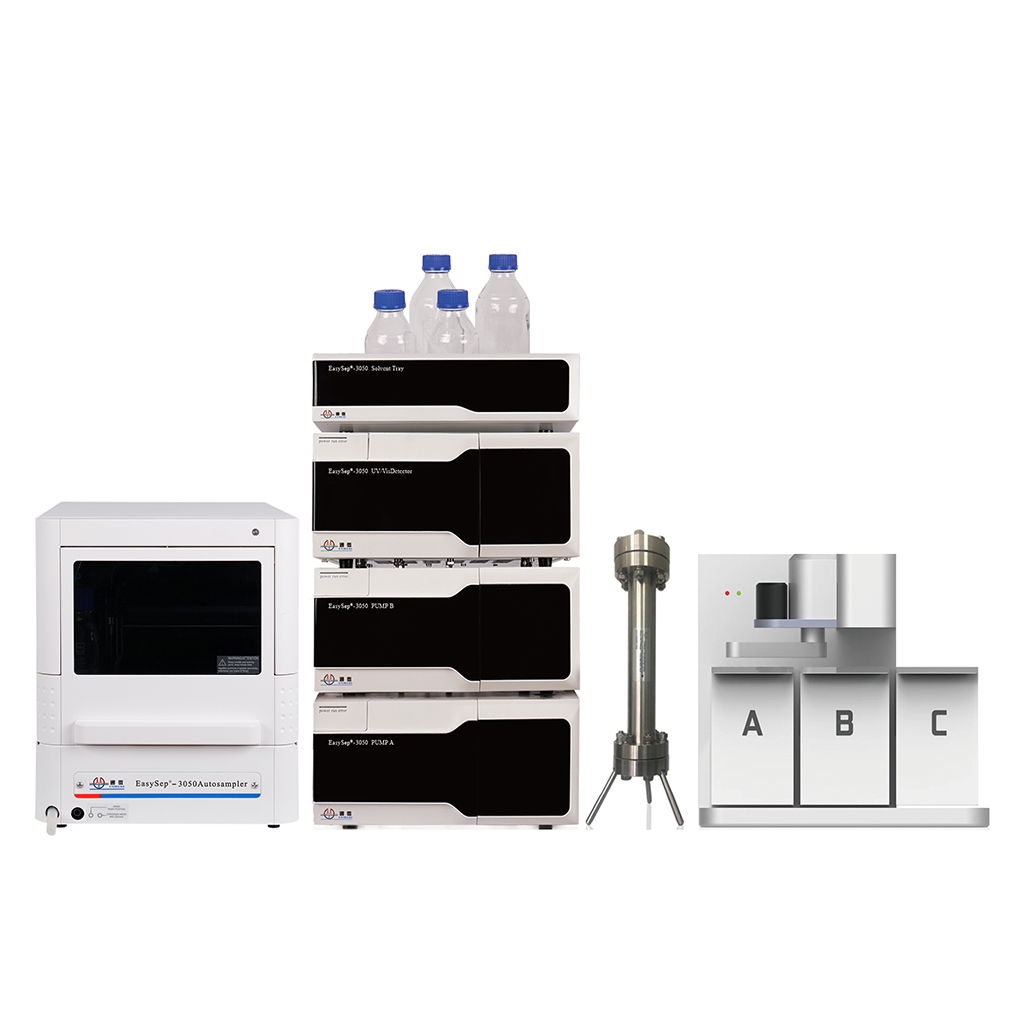

EasySep®-3050

Durable and reliable high-pressure preparation system

◆ Wide-range pump flow rate coverage, covering from nanoliter to kilogram levels of sample purification: 50 mL/min (EasySep®-3050 series), 100 mL/min (EasySep®-3100 series), with different configurations available for easy implementation;

◆ Equipped with a dual-wavelength UV-visible light detector as standard, tungsten lamp optional, with the wavelength range covering up to 800 nm and single/dual mode options;

◆ A variety of detectors, including UV-VIS, DAD, FLD, ELSD, MSD, etc., are available for selection to provide detection techniques that meet your application requirements;

◆ Equipped with automatic samplers and fraction collectors, from sample separation to detection, all processes can be fully controlled by the UnimicroChromStation software, achieving unmanned operation of sample purification;

◆ Supplied with preparation HPLC column consumables and repair services for column maintenance and repair.

Get In Touch

(Our staff will contact you. And all the data is encrypt.)
0/500 words

1. Specifications

Sampling frequency: 20 Hz

Flow rate range: 0 - 50 ml/min

Pressure resistance: 35 MPa

Flow accuracy: ±0.2% RSD

Sample site capacity: 24 (10 ml)

Sample size range: 0 - 10 ml

Temperature control range: Room temperature - 100℃

Wavelength range: 190 - 800 nm



2. Application scope

  • Pharmaceutical field: Used for the separation and purification of synthetic drugs and effective components of traditional Chinese medicine;
  • Natural product isolation and extraction: For analysis of nutrients, additives, contaminants, such as sugars, organic acids, vitamins, amino acids, pesticide residues, aflatoxin B1, etc. in food;
  • Biometabolic product extraction: Used for the separation and extraction of biomacromolecules, proteins, nucleic acids;
  • Chemical & environmental field: Used for sample pre-treatment to facilitate subsequent analysis detection, such as purification treatment for samples like polycyclic aromatic hydrocarbons and pesticide residues.
